INSTANT 2026 OIL & GAS PIPING ERECTION RATE AUDITS
A practitioner-built pricing tool for steel piping BOQs — erection man-hours, welding consumables, NDT, PWHT, FBE coating, hydrotest, and valve pressure testing — sourced from my own real projects experience, with every match validated or flagged, never silently guessed.
STEEL PIPING ERECTION ESTIMATOR APP (HTML file, runs in your browser) — $1,147 ONE-TIME
A practitioner-built feasibility tool that reads your uploaded erection BOQ, matches every line item against 4,000 macro-indexed 2026 baseline rates for steel piping erection and consumables, and returns an instant sanity check — Every match is transparent: an exact match, a validated close substitute with the mismatch explained in plain language, or an honest "no match found" — never a silent guess.
🎬 WATCH THE 50-SECOND WORKFLOW DEMO
✓ 14-day money-back guarantee · One purchase . Instant download . No WorkflowIQ server — runs in your browser, talks directly to Anthropic's API.
. Custom Reference Edition Included .
Launch price — moves to $1,547 after first 25 purchases.

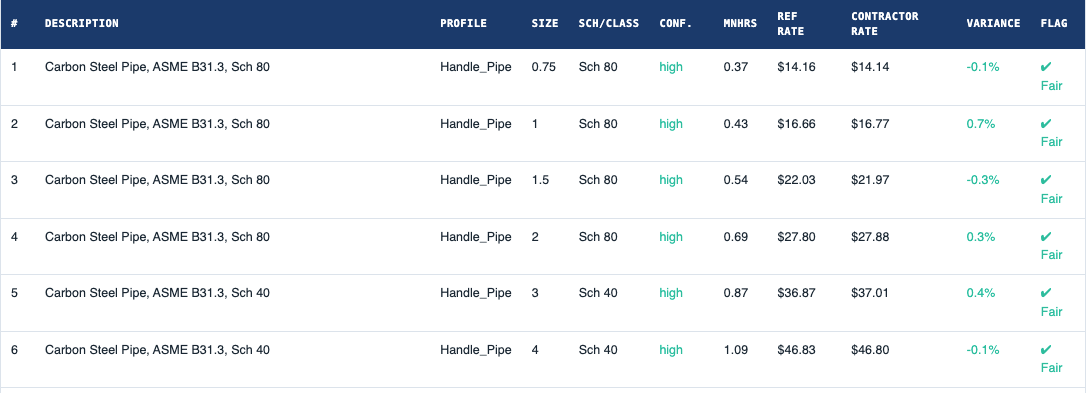

Actual output from the audit tab — contractor's BOQ uploaded, indexed benchmarks applied, variance flagged with full mathematical transparency.
Final figures depend on the reference file used to build the tool.

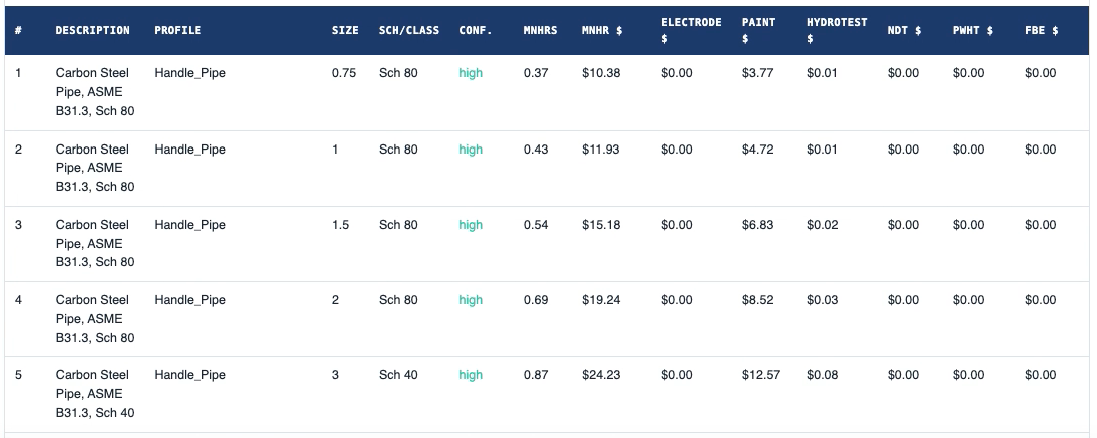

Actual output from the price tab — contractor's BOQ uploaded, indexed benchmarks applied. Final figures depend on the reference file used to
build the tool.
Requires a free Anthropic API key · Costs less than $0.20 per typical 150-item session · Full setup instructions included in the download
WHAT'S INSIDE
ONE ZIP FILE. EVERYTHING YOU NEED TO BENCHMARK ERECTION BIDS.
1 - Piping Erection & Consumables Feasibility Tool
Standalone HTML app. Opens in any browser. Drag and drop your erection BOQ Excel file — the tool auto-reads Description, Size, Schedule/Class, and Quantity columns, however they're named. AI semantically matches items against 4,200 macro-indexed 2026 benchmarks across pipe erection, fittings, flanges, valves, and bolt-ups — covering welding, electrode consumption, painting, hydrotest, NDT, PWHT, FBE coating, and valve pressure testing. Every non-exact match states plainly what didn't line up (size, schedule, or class) rather than substituting silently. Optional Productivity Adjustment Factor scales man-hours for labor conditions outside the GCC; also editable consumables rates. Upload your own reference file entirely if you'd rather price against your own company's rates instead of mine.
2 - How to Audit a Piping Erection Bid
PDF guide. Where contractors pad man-hour allocations, how welding consumables and NDT scope get inflated, and the specific red flags that separate a competitive bid from an overpriced one. Includes a validation framework and the exact questions to put to a contractor before you sign off.
3 - 4,000-Item Reference Excel Reference File with Prices
The complete underlying baseline database — labor productivity, consumables, and overhead breakdowns, sourced from my own real project work and validated across actual GCC piping erection contracts. Every row is labeled by source (real project data, or a cross-validated reference combination) and by confidence tier, so you can audit the math and provenance yourself, not just trust the output.
HOW IT WORKS
OPEN THE FILE. UPLOAD YOUR BOQ. GET RESULTS.
1 - Open the HTML app in Chrome, Edge, or Safari
No installation. No account. No WorkflowIQ server. The app runs entirely in your browser and connects only to Anthropic's API, using your own key, to price each BOQ.
2 - Paste your Anthropic API key once
Free to get at console.anthropic.com. You pay Anthropic directly — typically less than $0.20 per 150-item session. Full setup instructions in the README.
3 - Select your tab: Price My BOQ or Audit Contractor BOQ
Price tab: upload your unpriced BOQ — get unit rates, amounts, and cost breakdowns at your chosen spec tier and region. Audit tab: upload a contractor's priced BOQ — get a variance report with every overpriced item flagged.
4 - Upload your Excel BOQ file
Drag and drop. The tool reads Description, Qty, Unit, and Unit Rate columns automatically — including parent descriptions above quantified line items, as structured in standard steel piping BOQ templates. For multi-discipline BOQs, combine all sheets into one before uploading, or upload each sheet separately.
Note: If you hit a rate limit, the tool handles it gracefully — no work is lost. The tool will show an error message. Simply wait 60 seconds and click "Price BOQ with AI" again — the tool will resume from where it stopped (already-matched items are kept).
5 - Click "Price BOQ with AI" or "Audit with AI"
Each item is matched semantically — not by exact text — to the reference database. A close-but-imperfect match is flagged with a plain-language note explaining exactly what differed (size, schedule, or class); items with no reasonable match return a clear "No Match Found" result, so nothing is silently skipped or filled with estimated figures.

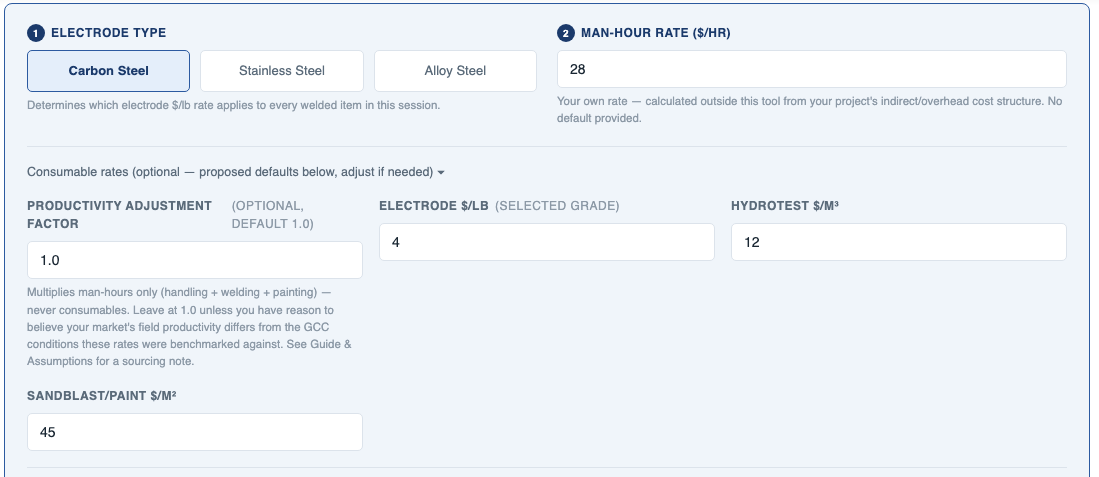

6 - Set your rates, or upload your own reference file (optional)
Enter your own man-hour, electrode, paint, and hydrotest rates directly — no preset regional averages standing in for your actual costs. An optional Productivity Adjustment Factor scales man-hours for markets with different field productivity than the GCC baseline. Prefer to price against your own company's data entirely? Upload your own reference file instead of the built-in one.
WHY THIS TOOL
Twenty years in this industry, split almost evenly between two worlds — MEP and oil & gas.
On the oil & gas side, I estimated piping erection costs for contractors working ADNOC, GASCO, ADCO, and Saudi Aramco projects. I've seen where man-hour allocations get padded, and where they get missed entirely — often in the same BOQ.
Nobody had a reference to catch it. Estimators were rebuilding judgment from scratch on every bid. So I built one.
It delivers in minutes the sanity check that takes an estimator hours. No black-box math — the reference data is rooted in real project cost breakdowns, escalated to 2026 using transparent, published labor and material indices. Because broad indices can't capture every hyper-local shift, the UI exposes the factors and lets you override them.
Do I need a subscription to use this?
No. You pay once for the download. The only ongoing cost is the Anthropic API usage — typically less than $0.2 for a full 150-item session — you pay Anthropic directly at standard API rates.. There is no subscription, no platform fee, and no usage limit on the tool itself.
What kind of Excel files does it accept?
Standard piping BOQ formats in .xlsx, .xls, or .csv, with Description, Size, Schedule/Class, and Quantity columns — recognized under common naming variants (NB, Diameter, Class, Sch, and similar). Handles parent system headers above quantified lines, and supports multi-sheet workbooks.
How accurate are the reference rates?
The rates are indicative macro-benchmarks: 369 line items come directly from my own real, field-documented GCC piping erection contracts; the remaining 3,814 are reference combinations mathematically derived from, and cross-validated against that same real data — escalated to 2026 using published labor and material cost indices, base cost plus overhead, without final contractor margins. Use the output as a rapid, reliable conceptual reference range, then adjust the rates to fit your local project realities.
What happens when an item doesn't match exactly?
The tool never silently substitutes or guesses. If a close reference item exists — same component, different size/schedule/class than what you specified — it's used, but flagged with a note stating exactly what didn't match. If nothing reasonably close exists, the item returns "No Match Found" rather than an invented number, so your total cost estimate is never quietly padded with fabricated line items.
Is my project data secure? Does WorkflowIQ store my BOQ files?"
Your BOQ files never leave your device. The app processes everything locally in your browser and connects directly to Anthropic's servers using your own API key. WorkflowIQ stores zero project data, cost codes, or document content.
⬇ Free standalone demo — test on your own erection BOQ
33 items · No account · No API key needed
Uses keyword matching — full tool uses Claude AI semantic matching across all 4,643 items
Type any oil & gas piping erection item below — elbows, tees, reducers, flanges, valves, olets, pipe. The tool matches it against the reference database and returns handling/welding man-hours, NDT, and PWHT where it applies. No API key. No sign-up. Instant.
Matches ~33 common erection items across elbows, tees, reducers, flanges, valves, and olets. For full 4,643-item AI semantic matching coverage — including dynamic PWHT/NDT calculated from your item's own wall thickness — upload your BOQ in the complete tool.
Have a specific project in mind? Contact us and we'll take a look.
| # | Your description | Matched reference item | Size | Mnhr | Unit rate (USD) | NDT | PWHT |
|---|
One purchase . Instant download . No WorkflowIQ server — runs in your browser, talks directly to Anthropic's API. No subscription.
✓ 14-day money-back guarantee. Run a session with your own BOQ file. If it doesn't do what this page says — email us with your usage evidence and we'll refund in full.
Includes: HTML app · 4,000-item Excel reference file · 4-page audit guide · README with full API setup instructions ·
· Custom Reference Edition Included ·
Launch price — moves to $1,547 after first 25 purchases.
Add-on module
This tool prices erection and consumables. Pair it with the Material Sourcing Module to price the pipes, valves, flanges, fittings, and spectacle blinds themselves — any grade, any schedule, any pressure class, half an inch to eighty inches, built to ASME, ASTM, ANSI, and API standards.
Piping Material Supply Pricing
Every line checks China first, and suggests an alternative origin if also available. No match there, and it automatically prices the cheapest available option from another origin — flagged, never silent — priced from ADNOC AVL-approved manufacturer rates.
Every oil & gas material take-off has the same weak point: the price depends on who you ask, and where they're sourcing from.
This module prices pipes, valves, flanges, and fittings — every grade, schedule, and pressure class, built to ASME, ASTM, ANSI, and API standards — across close to 5,500 distinct items.
Every rate comes from manufacturers on ADNOC's Approved Vendor List. If a manufacturer clears that bar, it clears Aramco's and the rest of the GCC's too. China is checked first on every item, in addition to an alternative origin suggestion if also available. No match there, and the engine automatically falls back to the cheapest available option — South Korea, Europe, India, and more — and tells you exactly which origin it used and why.
~5,500 distinct items
Every size, schedule, and grade you'd find in an oil & gas material take-off — priced across multiple origins.
ADNOC AVL-approved rates
Every rate comes from manufacturers on ADNOC's Approved Vendor List — the same benchmark that clears Aramco and the wider GCC.
Automatic sourcing, fully transparent
China checked first on every line, an alternative origin suggestion displayed if also available. Cheapest available origin used as fallback when China is a no match — always disclosed, never silent.
Instant download · One-time payment · No subscription ·
What the module adds
| Feature | Erection Estimator | + Material Sourcing Module |
|---|---|---|
| Piping Erection & consumables pricing | ✓ | — |
| AI semantic matching & contractor audit | ✓ | ✓ |
| Pipe, valve, flange & fitting material pricing | — | ✓ |
| Automatic China-first sourcing, with fallback across South Korea, Europe, India & more | — | ✓ |
| ADNOC AVL-sourced material rates | — | ✓ |
Try it free — no purchase needed
Type any piping material item below — pipe, fittings, flanges, spectacle blinds, valves, with size and grade. The tool matches it against real supplier pricing and returns an Ex-Works/FOB unit rate, sourced China-first with automatic fallback across other origins. No API key. No sign-up. Instant.
Try the Free Demo →No API key · No sign-up · Instant results
Material Sourcing Module
Launch price, moves to $1,247 after 25 purchases.
Instant download · One-time payment · No subscription
The natural companion to the Piping Erection & Consumables Estimator.
